R. 25 bowl built-in and undermounted 40

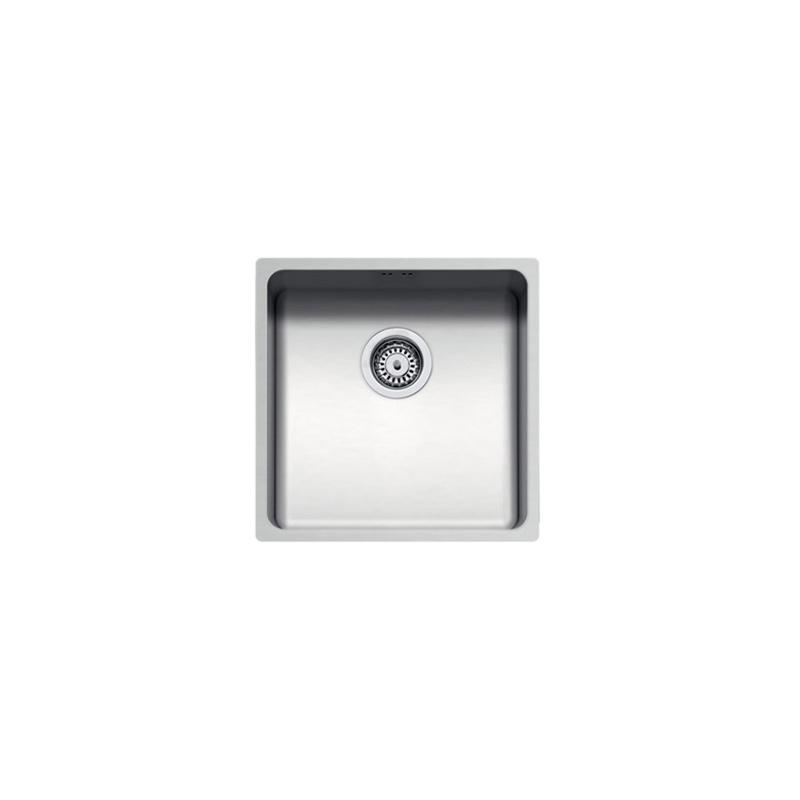

R. 25 bowl built-in and undermounted, st. steel 40x40 1 bowl

Data sheet

Basket strainer waste: 3.5”

Equipment: fixing clips,overflow, basket strainer waste and plug

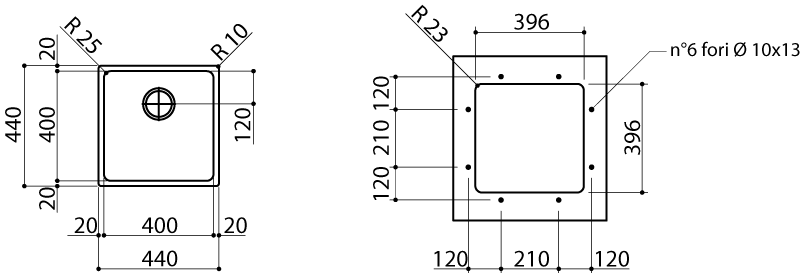

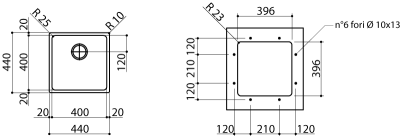

Bowl size: 1 bowl 40x40x20 h

Base unit for bowls:
- built-in: 50
- undermounted: 60

Cutout for top:
- cut out: 42x42 + notch for overflow
- undermounted bowl: 39.6x39.6 R. 2.3

Product codes

1W40
st. steel - cardboard packaging and trap
