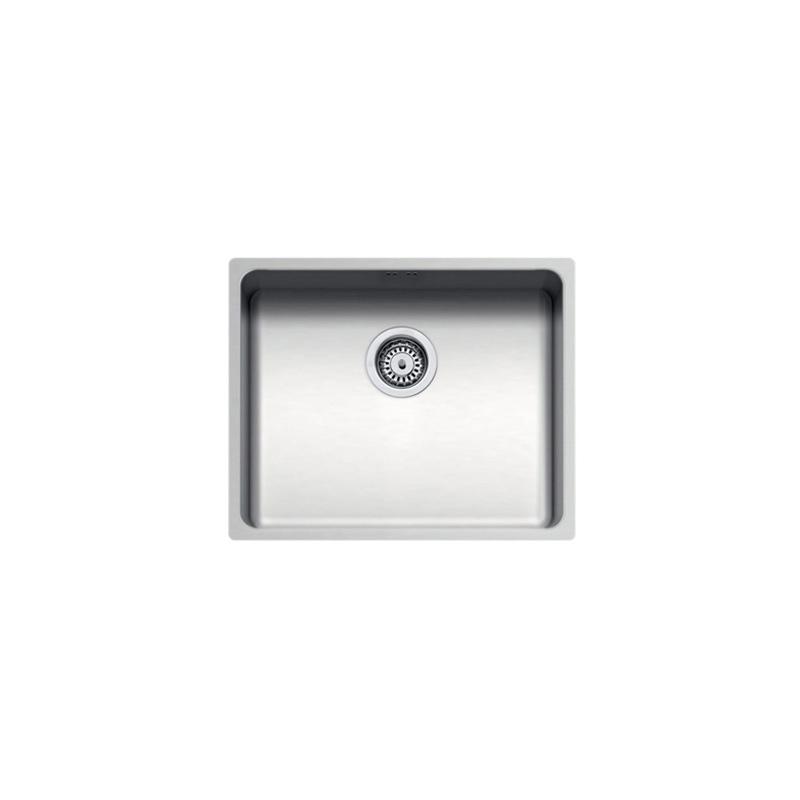

R. 25 bowl built-in and undermounted 50

R. 25 bowl built-in and undermounted, st. steel 50x40 1 bowl

Data sheet

Basket strainer waste: 3.5”

Equipment: fixing clips,overflow, basket strainer waste and plug

Bowl size: 1 bowl 50x40x20 h

Base unit for bowls:
- built-in: 60
- undermounted: 80

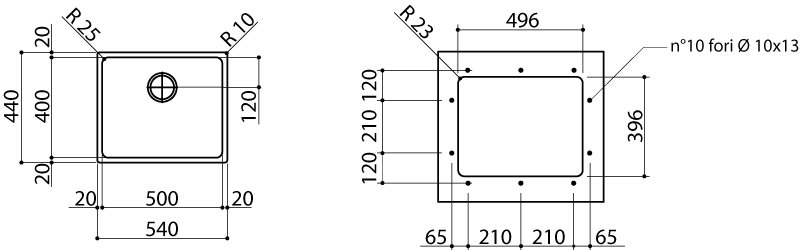

Cutout for top:
- cut out: 52x42 + notch for overflow
- undermounted bowl: 49.6x39.6 R. 2.3

Product codes

1W50
st. steel - cardboard packaging and trap
