Vicky 60x60 multifunction oven

Vicky 60x60 multifunction oven

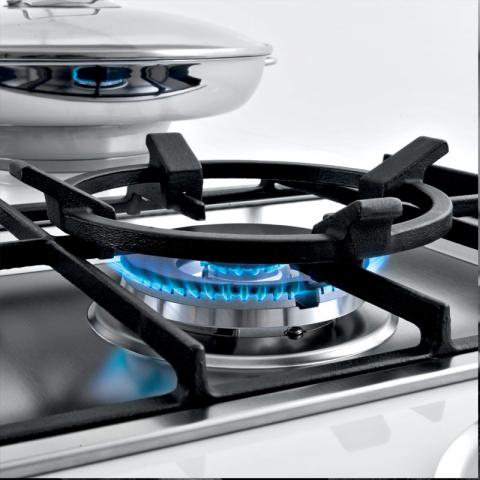

Vicky 60x60 multifunction oven 3 gas burners + triple ring cast iron pan supports


Data sheet

Features: stainless steel hob, 3 cm edge, 6 cm channel, designed to accommodate a cover, automatic ignition and rapid safety valve

Burner caps: cast iron finish

Burners: eco-flame, extractable, one-piece

Triple ring burner power: 3.3 kW

Functions: 8 + rapid defrost (static oven, warming oven, browning oven, grill, fanned grill, fan assisted oven, bread/pizza, fan assisted multilevel oven)

Programming: 60’ mechanical timer with buzzer

Equipment: internal light, easy clean enamel stainless steel tray, stainless steel shelf, tangential cooling fan, designed to accommodate a cover, 10/12 cm black legs

Oven lining: easy clean

Door: extractable and removable door with triple heat-reflecting internal glass

Technical features

+ Surface structure

The hobs on Jollynox cookers are made with deep drawing that allows the containment of any overflowed liquids: this avoids the risk of infiltration.

+ Extractable one-piece burners

The hobs of Jollynox cookers are equipped with easily extractable one-piece burners which can therefore easily undergo regular cleaning operations.

+ Eco-flame

Burners with steady flames which provide high heat yields, accompany Jollynox hobs, enhancing the performance levels; they optimise energy consumption and reduce toxic substance emissions by more than 50% when compared to the details established by the Norms.

+ Automatic ignition and rapid safety valve

It allows for the activation of the main switch using the knob; with just one action, you are able to carry out activation and regulation procedures. With all hobs, the spark plus is placed inside the burner, under the cap, away from liquids which may drip from cooking instruments and from any damage which may be caused during cleaning operations. The rapid safety valve blocks the gas flow, even with the tap open, in case the flame accidentally goes out. It is activated when the burner is alighted and thanks to the rapid thermocouple, it takes just seconds to function.

+ Front control panel

The front control panel on Jollynox cookers contains all the tools required to run and programme the cooking cycle easily and safely: the functions selector, the thermostat, the cooking programmer and the indicator light which indicates the electrical operation of the oven. Another indicator light also shows when the temperature set has been reached in all electrical ovens.

+ Heat-reflecting glass panels

The door on Jollynox cookers features double-heat reflecting internal glass to contain the heat inside the oven, limit heat dispersion and maximise the heat produced by the oven for cooking, thus reducing energy consumption levels and maintaining the external temperature of the oven door low. Vicky cookers are equipped with a third glass that creates a genuine barrier against heat. It affords extra safety, especially for children who will thus avoid burning their fingers if they touch the oven door.

+ Internal shelf stability

The internal shelves of Jollynox ovens are especially stable because they run along a double rail along the oven interior sides.

+ Cooling system and tangential cooling fan
Cooling system and tangential cooling fan

Jollynox ovens are equipped with a natural convection overheating protection to control the external temperatures and keep them within the limits set out in the applicable safety standards. In addition, a tangential cooling fan is activated when the oven is ignited and produces a flow of cold air which, as it exits from the slits in the control panel, creates a barrier against the heat originating from the oven, further containing the temperature of the front panel.

+ Extractable and removable door

The special balanced double-jointed hinges not only make it easier to open the door and clean it, but they also allow rapid and easy extraction of the door itself, without the need for any tools. Once the door is extracted, it can be disassembled, cleaned and then easily reassembled onto the oven in a few simple and rapid steps.

+ Easy clean oven
Easy clean oven

The oven interior is made without any sharp edges or any welding points. In addition, owing to the vitreous structure of the easy clean enamel, the whole interior of the oven is even smoother: any cooking grease slides off for easy cleaning.

+ Covers

All the Jollynox overbench and combi cookers can be fitted with a black tempered glass cover.

+ Multifunction oven
Multifunction oven

Electric oven, 8 manual cooking functions and rapid defrost with top, bottom and central heating elements and fan: static oven, warming oven, browning oven, grill, fan-assisted oven, fanned grill, bread/pizza, fan-assisted multilevel oven. The combined operation of the different heating elements with the fan makes it possible to achieve the most varied types of cooking.

Product codes

st. steel


266 KB
17 MB
17 MB
PDF riassuntivo
